Encyclopedia Vol. 2: The Physics of Invisible Engineering – Magnets & Active Geometry
Most people assume vertical chess works by simply "gluing a magnet to a piece." That is a misconception. In this technical chapter, we explain the physics of clamping force, the "Active Geometry" of the Dual Magnet System, and why we use press-fit technology instead of glue.
Executive Summary (Key Takeaways)
- Active Geometry: A single magnet allows a piece to rotate and slide chaotically. Our Dual Magnet System creates a "rail" that forces precise vertical alignment.
- The Physics of the Gap: Protective felt and wood veneer create a distance that drastically weakens magnetic pull (Inverse Square Law). We compensate with a calibrated array of high-grade neodymium magnets.
- Press-Fit Technology: We do not use glue, which creates a point of failure. Magnets are permanently press-fitted into CNC-machined seats.
- Habituation: The system "snaps" pieces into place. For coaches used to sliding pieces loosely on demo boards, this precision requires a brief period of adaptation.
Introduction: Why Physics Matters
When you hang a chessboard on a wall, gravity becomes your primary opponent. To win this fight while maintaining the elegance of a luxury product, simple solutions are insufficient. We cannot allow metal to touch metal (it scratches). We cannot allow pieces to slide uncontrollably.
The solution lies in the ChessboArt Dual Magnet System. It is not just about holding the piece; it is about holding it correctly.
1. Active Geometry: Why Two Magnets?
The fundamental difference between a toy and a professional system is geometry. In cheaper solutions, a single central magnet is typically used. While effective for simple training, this approach compromises precision:
- Rotational Instability: A single point of contact allows the piece to spin on its axis. A Knight can easily turn upside down; a King can lean.
- Grid Chaos: A single magnet allows the piece to be attached anywhere on the metal surface—between squares, on lines, or off-center. This results in a messy, illegible board.

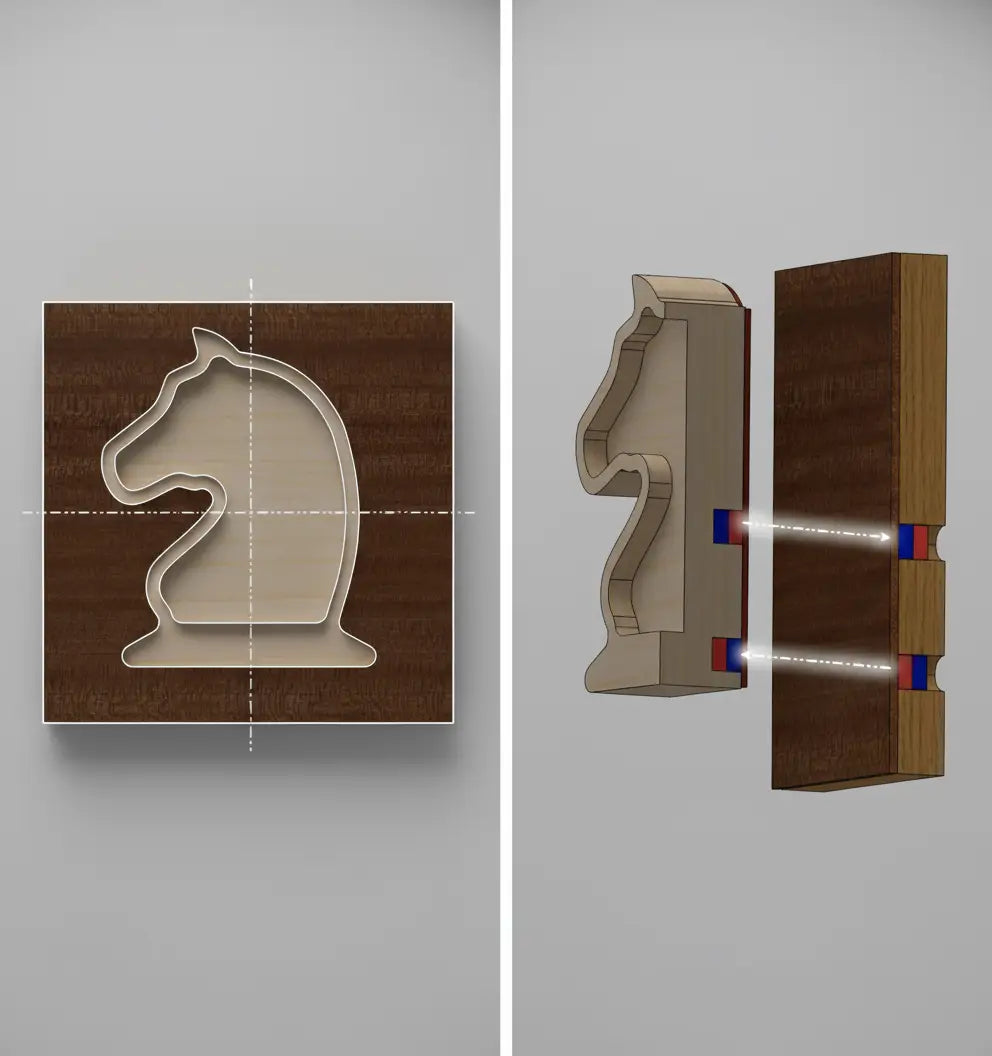

The Dual Magnet Solution: By using two magnets spaced apart, we create a "magnetic rail." Two points define a line. The moment the piece approaches the board, the magnetic fields interact to force the piece into a perfect vertical orientation. We call this Active Geometry. The system actively corrects the piece's position, ensuring the King's cross is always vertical and the board remains visually disciplined.
2. The Physics of Force & The "Air Gap"
There is a physical law that makes designing luxury vertical chess difficult: the Inverse Square Law. Magnetic force drops drastically as the distance between magnets increases.
In standard demo boards, the magnet often touches the surface directly to maximize force. But this creates friction, noise, and scratches. At ChessboArt, we prioritize the protection of the wooden surface.
- The Gap: Between the magnet in the piece and the magnet in the board, there is a layer of natural wood veneer and a layer of soft protective felt.
- The Engineering Challenge: This gap significantly reduces magnetic pull.
- The Solution: To overcome this distance and guarantee a secure hold, we cannot use standard ferrite magnets. We use a calibrated array of high-grade neodymium magnets. Using two magnets distributes the clamping force over a wider area, ensuring stability without requiring excessive force to move the piece.
3. Construction: Press-Fit vs. Glue
How the magnet is mounted is as important as the magnet itself. In mass production, magnets are often simply glued into a hole. Over time, glue degrades, dries out, and fails—especially when the magnet is constantly pulling against a vertical board.
The Press-Fit Method: In the ChessboArt system, the seats in the wooden bases are CNC-machined to be slightly smaller than the magnets. The magnets are then pressed in using high mechanical force.
- No glue is used.
- The wood’s natural elasticity holds the magnet in place permanently.
- The magnets are recessed to accommodate the felt pad, ensuring zero metal-to-wood contact.
This ensures that the magnet will never detach from the piece, regardless of temperature or humidity changes in your home.
4. The "Snap" (User Experience)
The Active Geometry system creates a specific tactile sensation that is different from standard boards.
When you move a piece on a ChessboArt board, you don't just "place" it. You feel it snap into position. The magnets actively pull the piece to the exact center of the square.
A Note for Coaches and Professionals: If you are accustomed to standard demonstration boards where you can slide pieces loosely or place them "somewhere near" the square, this system requires a moment of adaptation. You cannot place a piece "halfway" between squares to denote an uncertain move. The system forces precision. For many, this is a feature that keeps the board looking immaculate. However, it requires a habit of decisive movement. You lift, you move, you lock.
5. Summary
The ChessboArt system is not about magic; it is about overcoming the physics of the gap created by luxury materials. By using the Dual Magnet System, we solve three problems at once:
- We prevent rotation (Geometry).
- We generate sufficient clamping force through the protective felt layer (Physics).
- We force perfect alignment on the board (Aesthetics).
In Volume 3, we will move from what is hidden inside to what is visible outside: Wood & Craftsmanship. We will discuss why we use specific species of wood and how we achieve stability in a large wooden surface.
